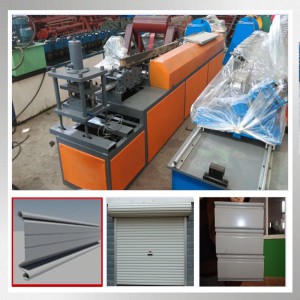

Steel Shutters Door Frame Tile Making Forming Machine
Steel Shutters Door Frame Tile Making Forming Machine
The shutter door can be used for specially equipped vehicles, fire engines, rescue vehicles and bottle cars. The lightweight, thin type shutter can be opened and closed smoothly with no noise. We also can see the shutters door in shops and warehouse. Technical Parameters of steel shutters door frame tile making forming machine (depending on specific requirements of users)
| Suitable steel plate | Type | Color steel plate |
| thickness | 0.3-1.2mm | |
| Feeding width | As users needs | |
| Effective width | As users needs | |
| Production speed | 8-12m/min | |
| Roller stand | 14 rows | |
| Diameter | 52mm | |
| Main power | 3kw | |
| Pump power | 3kw | |
| Side panel of machine | 14mm | |
| Roller material | Carbon Steel 45# | |
| Blade material | Cr12, qunched, Cr-plating size 0.05mm | |
| Control system | PLC Delta Inverter | |
| Main structure of the machine | 300mm H-Beam | |
Features of shutters door:
- The shutter is light and thin, and the waterproof seal is built in.
- Less noise and the door opening and closing is smooth.
- The shutter is wound up to the top, so that the work can be done even in a narrow space.
Steel Shutters Door Frame Tile Making Forming Machine Components
| No. | Item | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main roll forming machine | set | 1 |
| 3 | PLC control box | set | 1 |
| 4 | Supporter table | set | 1 |
