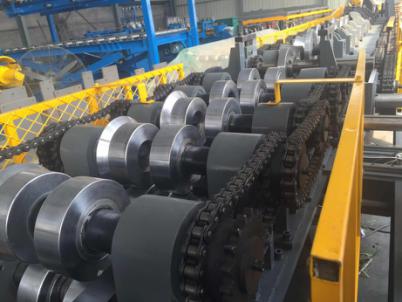

Semi automatic C Z purlin roll forming machine

The semi automatic c z purlin roll forming machine can produce different sizes C Z purlin profiles by simple semi automatic adjust,no need to replace the forming rollers, it takes automatic control during production process.The machine can automatically finished punching,cutting and roll forming. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C & Z shape forming system, punching equipment, post-cutting equipment,, hydraulic station, and controlling system.

The semi automatic c z purlin roll forming machine consist of sheet guiding, levelling, hydraulic punching, hydraulic cutting device, roll forming machine, PLC control system, hydraulic station.
The full production line take a gear motor and frequency control, so the running speed,length fixed and position control is accurate.
The semi automatic c z purlin roll forming machine have good looking appearance, and high working efficient.The max running speed and reach to 20m/min.

C Z Purlin mainly use hot roll steel strip or hot dip galvanized steel strip at thickness 1.5～3.0 mm. it is roll formed by C or Z shape roll forming machine

Working Flow
Decoiling the coils—→Sheet Guiding —→Coil Strip Leveling—→Roll Forming—→Punching for horizontal hole —→Measure Length —→ Cutting the Panel—→Panels to the Supporter.
