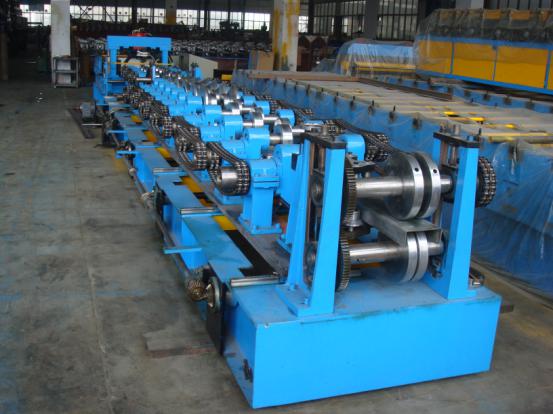

C To Z Purlin Roll Forming Machine

C To Z Purlin Roll Forming Machine

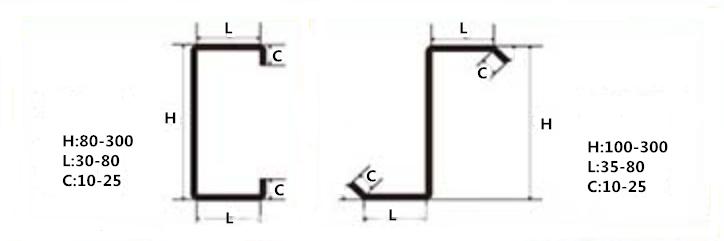

We are actively engaged in offering high quality assortment of C To Z Purlin Roll Forming Machine. Offered product is used to making many types of purlin in one machine only by changing a roller. Moreover, the whole Manufacturing process is mainly consists of decoiler, roll forming machine, punching Press, cutting press, hydraulic press, and plc control panel. In addition to this, the C & Z purlin formed by this roll forming machine have outstanding anti-bending property and are easy to install.

Features:
Low maintenance
Sturdy design
High performance
Other Details:
Decoiler 5 ton
Punching press 20 tone 2 nos
Entry Gate with

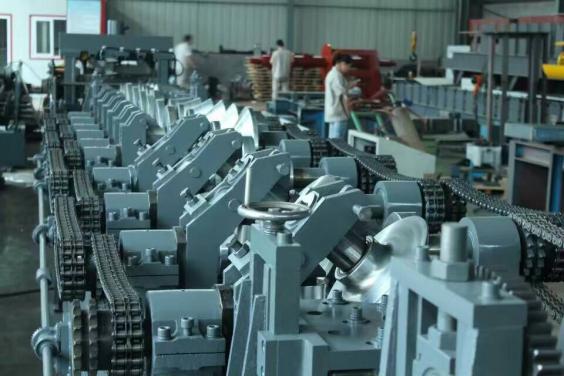

Roll Forming Line with 14 station
Control Panel semi auto

Technical Specifications:
Maximum sheet width that can be formed: 300mm
Maximum sheet thickness in Strips that can be formed: 3 mm.
Number of forming stations: 14 nos
Vertical station: 12 nos
Speed of the machine: 18m/min
Size of machine: 11500 x 1500 x 1500 mm
