Fully automatic high speed drywall making machine

1006

Fully automatic high speed drywall making machine is developed based on the normal speed machine. As the huge needs of market of drywall and wokers salary goes up fast, most of the manufactures of drywall are searching for fully automatic and high speed drywall making machine. By this kind of machine, one worker within one shift can produce four times drywall finished products than the normal speed making machine.

Here we just take drywall as an example, actaully any type light steel keel machine, we could develop it to high speed and fully autoamtic type. The machine works in the speed of 50m/min with servo motor in the shearing part. After shearing, there will be the fully automatic package system to package the finished product. By this method, at most one worker can handle two production line. Take a random drywall drawing profile for example:
Fully automatic high speed drywall making machine_profile

Fully automatic high speed drywall making machine parameters for your reference:

Roll forming machine
Size: 5000х1300х1500            Weight t: 2.5tons
Voltage:380V/50HZ3Phase(as customer's request)
Frame : middle plate welded            Memorial arch frame type
Frame thickness:25mm                  Drive mode: gear
Material of rollers: GCr12MoV            Material of shafts: 45# steel with tempering
Diameter of shafts: φ40mm               Number of rollers: C shape 11 rollers
U shape 10 roller stations.               Main power: 3kw+3kw
Cycloidal planetary gear speed reducer)          All motor brand: Semens
Shearing machine
Material of blades: Gcr12 quenched
Power supply : hydraulic power
Frame : Pillar style with rack & pinion system
Strokeswitch:non-contact photoelectric switch
Make sure all pipes are packaged in safty guard rail.
Fully automatic package system
It adopts welded steel and supported roller to transmit the products.
Electric Control System
1. Adopted PLC, transducer, touch panel from to ensure high speed with stability, precision and lifetime. Brand is Mitsubishi
2.Other electric element are Schneider
3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

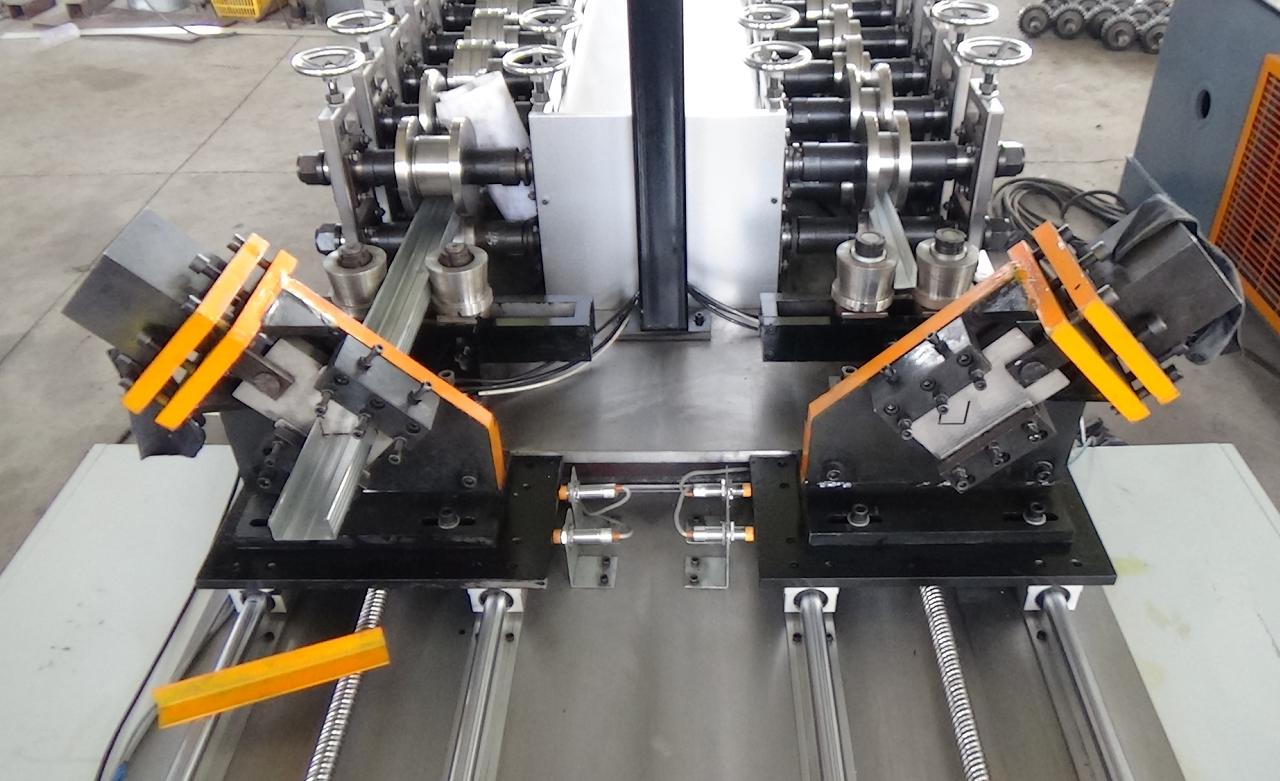

Here are some machine pictures for your refernce
Fully automatic high speed drywall making machine_for renference
Fully automatic high speed drywall making machine_for renference1
Fully automatic high speed drywall making machine_for renference2

Here is the machine working video of testing process for your reference:

And for this machine, if you want to know more information, please contact us at any time.
